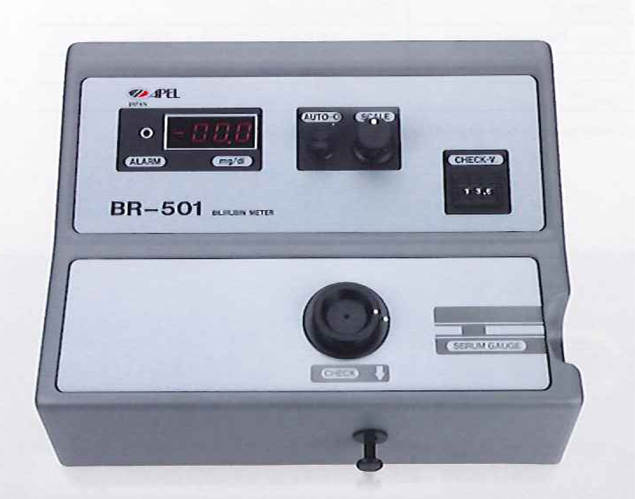

Hassle-Free Intelligent Bilirubin Meter
BR - 501 APEL Dual Wavelength Total Bilirubin Meter - Made in Japan


Most suitable for jaundice analysis of neonates.

Auto-zero function

Advanced electronic technologies such as Auto-Zero system simplify the operation
Handles hemolysis and turbidity easily

Careful selection of the dual wavelength color filter and the combination of electronic technology minimize the interference of hemolysis and turbidity.
Particularly suitable for jaundice examination of neonates.
Easy set of sample tube

A sample gauge provided on the surface of BR-501, which indicates the proper sample volume to be inspected. Only simple action is required to set the capillary tube into the holder.
Alarm lamp informs user of abnormalities.

Alarm lamp signals either abnormal value or situations such as burned out of the bulb, bilirubin concentration of more that 30mg/dL, or high hemolysis of more that 250mg/dL.
Flexible power source

Power requirement is flexible, from 100 to 240 VAC.
Easy lamp replacement

Exchange procedure of the lamp is simplicity itself.




Specifications

Display 3 1/2, 7-segment red LED
Filter 461mm & 551mm
Measuring Range 0 -30mg/dL (Total bilirubin)
Correcting hemolysis 0 - 250mg/dL HbCV
Measuring accuracy ±5%
Sample volume 50 - 60 μL
Sample container Hematocrit capillary tube (heparinized)
Light Soruce 6V, 1.5A tungsten lamp
Photocell Silicon photocell AC adapter (Input 100-240VAC, output DC 12V 5A)
Ppwer Requirements 100-240VAC, 50/60Hz, 35W
Dimensions 270(W) X 230(L) X 120(H) mm
Weight Net 2.7kg (Main body)

Specifications and apperance are subject to change without notice.

Standard Accessories

Apel Bilirubin Standar (ABY) 2 bottles
Capillary tube (Heparinized) 1 vial (100pcs)
Capillary tube (Plain) 1 vial (100pcs)
Clay sealer (Wax Plate) 1 pc
Spare lamp 1 pc
Spare fuse (1A) 2 pc
Dust cover 1 pc
AC Power code 1 pc
Operation Manual 1 copy
